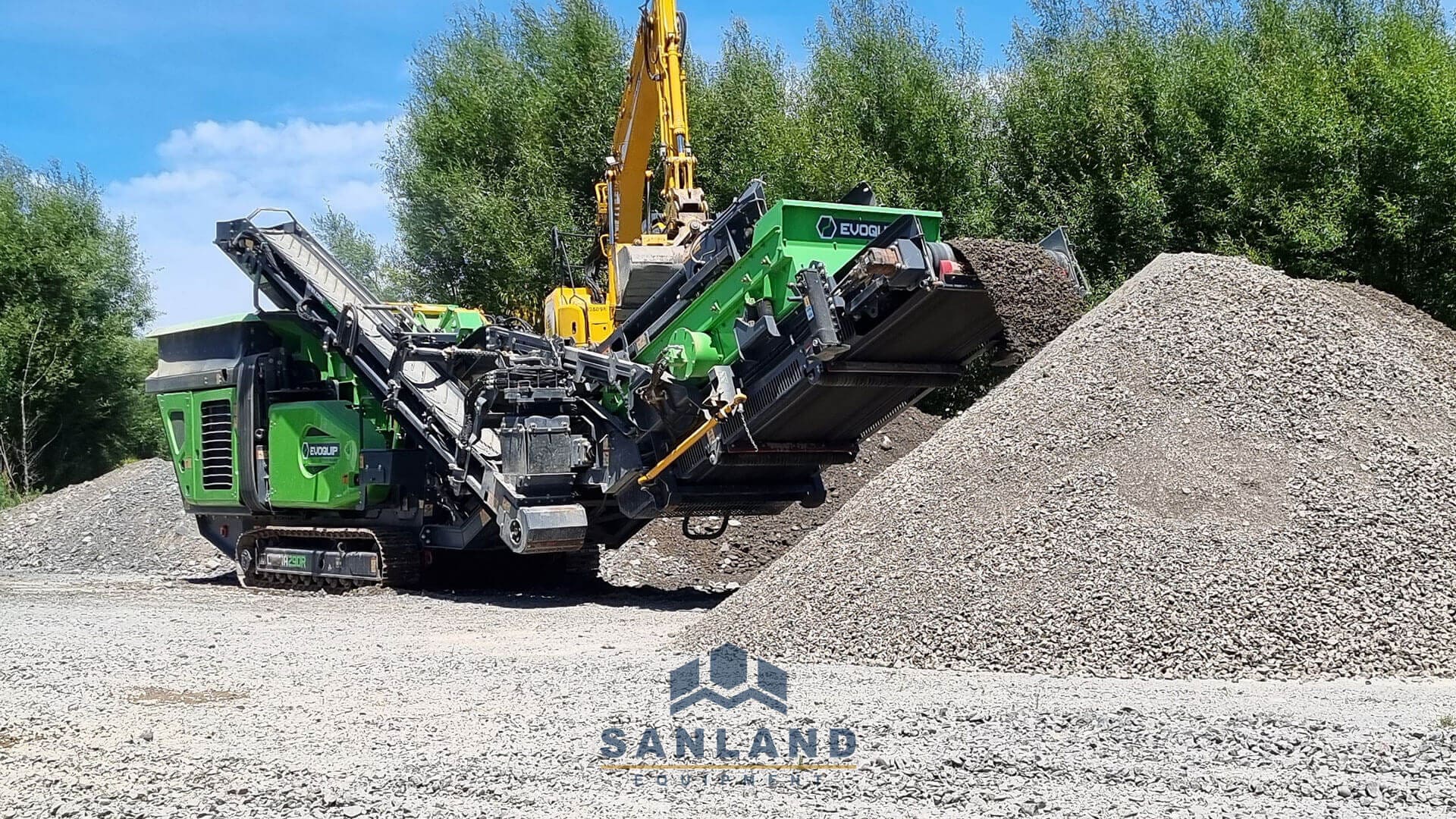

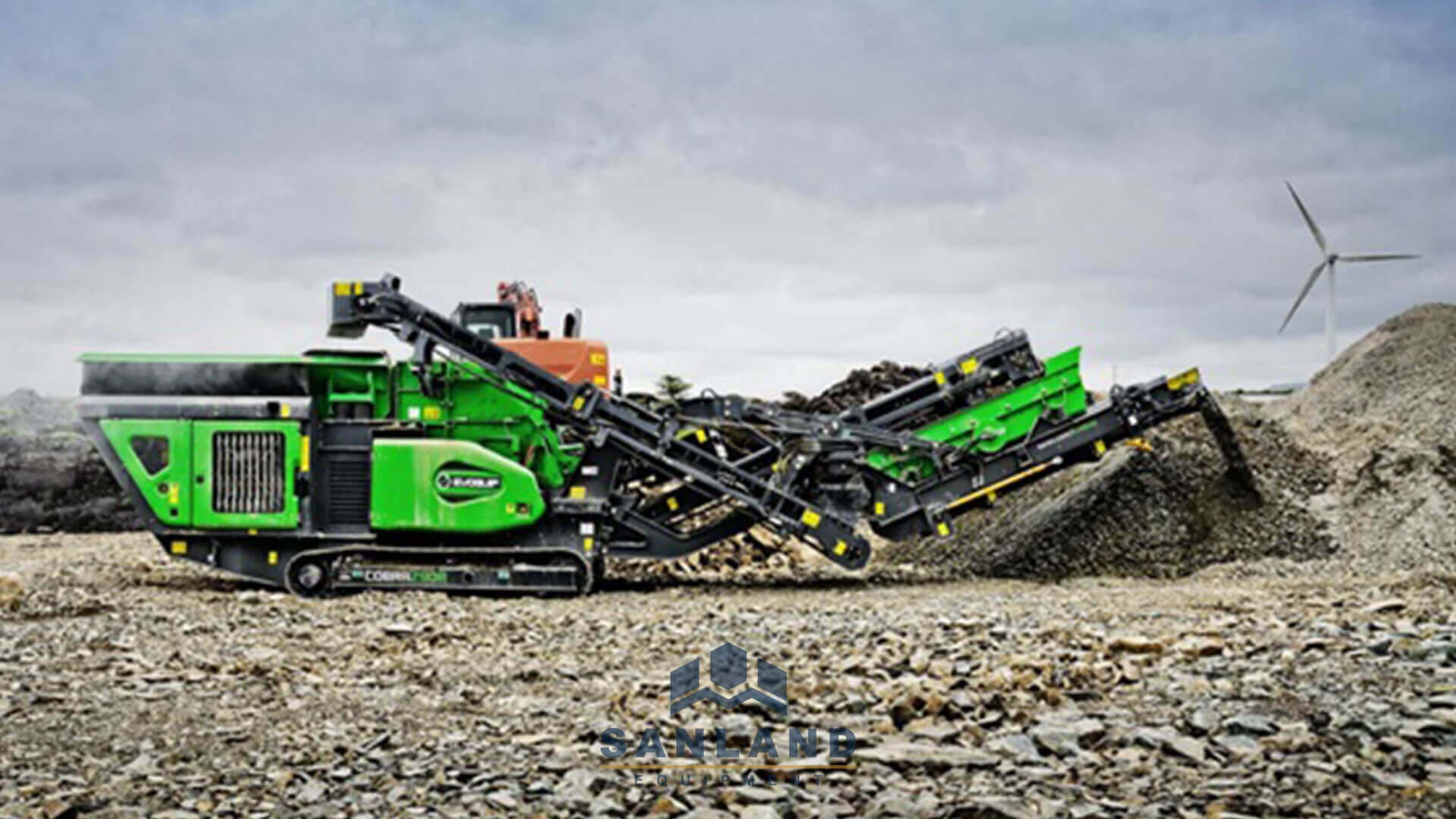

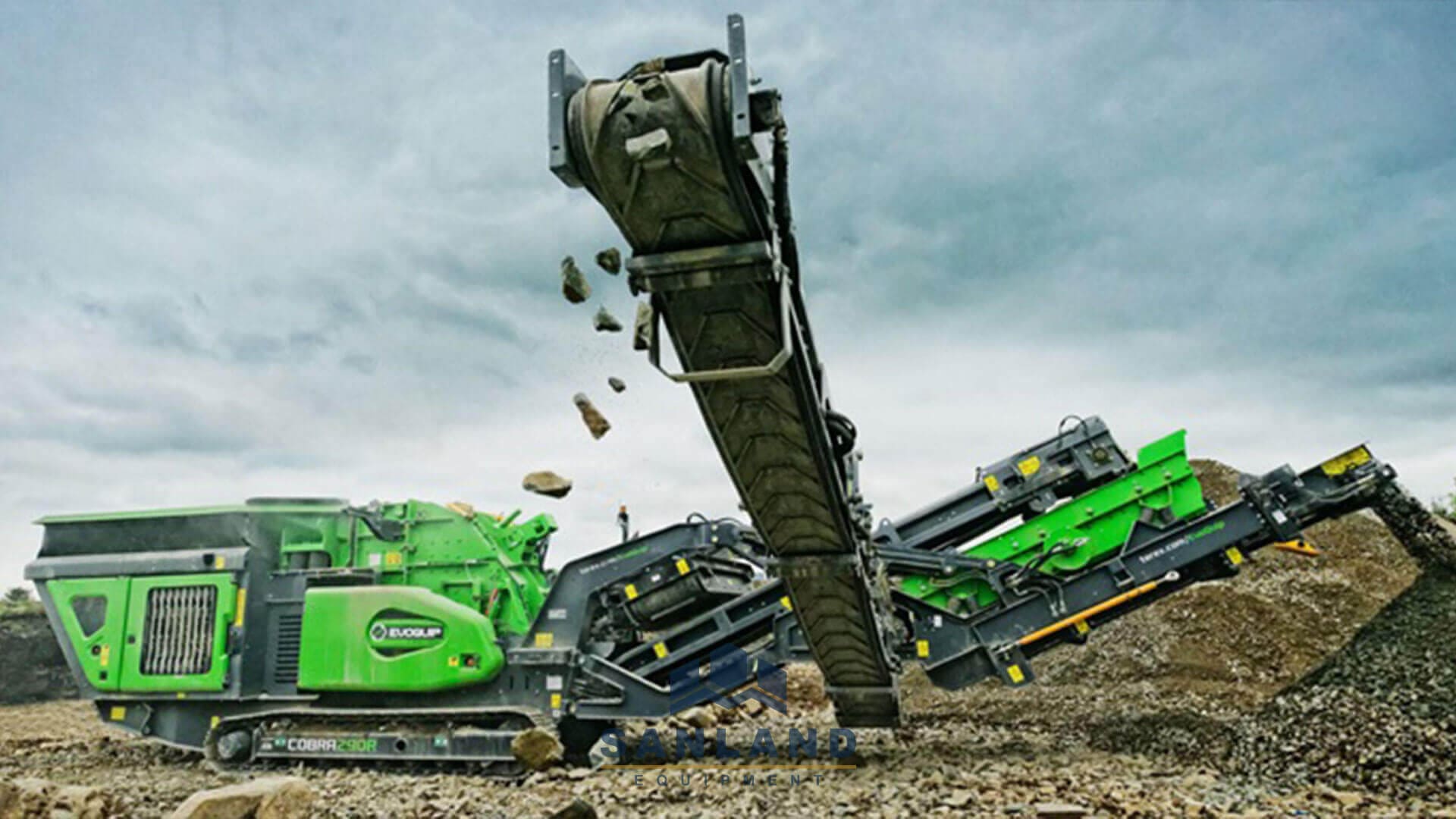

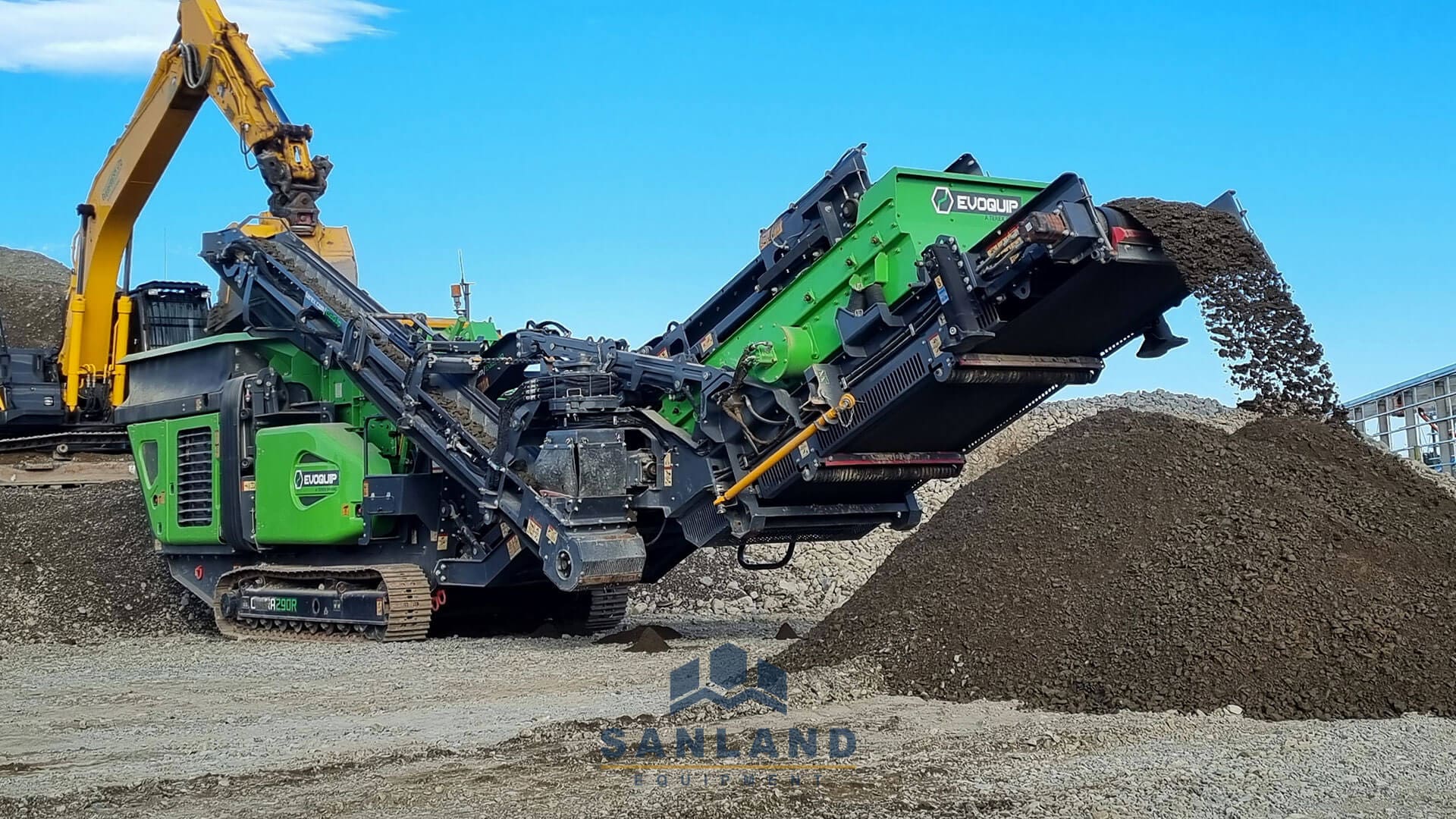

In Stock – Terex EvoQuip Cobra 290R Impact Crusher
The EvoQuip Cobra 290R is a powerful, user-friendly track-mounted impact crusher designed to perform in tough applications, including reinforced concrete, recycled asphalt, C&D waste, and natural rock. Featuring a fully integrated afterscreen and recirculation system, it delivers precise product sizing while minimizing downtime.
Key Features
-
Ideal for on-site recycling in urban environments
-
Fuel-efficient direct drive system
-
Fast setup time with ground-level access
-
Easy transport between jobs
-
Simple two-button start-up sequence
-
Suited for high-demand material processing
-
Two independently hydraulically controlled aprons for adjustable reduction and throughput
-
Hydraulic overload protection system reduces oversize material and protects chamber
-
Oversize material can be recirculated or stockpiled
-
Optional wind sifter removes plastic, wood, and light contaminants from C&D waste
-
Hinged inlet lid prevents feed bridging
Technical Specifications
Output
• Max throughput: Up to 290 tph (depending on feed)
Crusher
• Impact Crusher Inlet: 1030mm x 790mm
• Rotor Size: 1000mm x 1034mm (40” x 41.5”)
• Hydraulic overload protection
• Two hydraulic aprons
• Hinged feed lid
Pre-Screen & Afterscreen
• Integrated pre-screen: Configurable for multiple materials
• Post screen: 2.74m x 1.5m
• Afterscreen: 9’ x 5’ aggressive single deck
Feeder
• Vibrating feeder
Hopper
• Capacity: 3.3m³
Conveyor
• Main conveyor width: 1m
Power Unit
• Tier 3 Volvo Engine: 235kW (315hp) – Direct drive via clutch and V-belts
