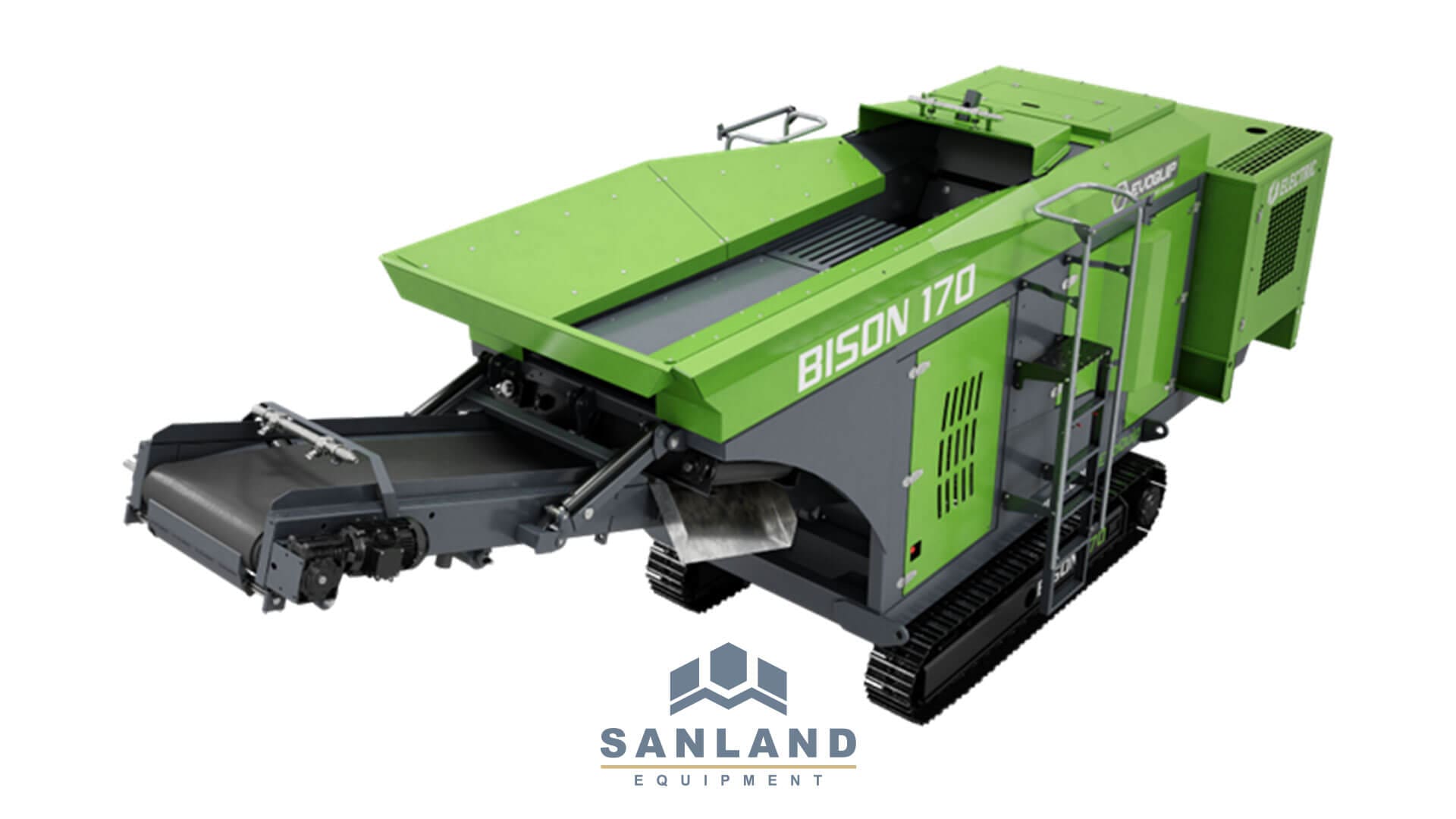

It is an ideal choice for customers who prioritise value, ease of use and maneuverability but don’t want to sacrifice performance. It boasts a 700x500mm jaw chamber, with the ability to process both natural rock and recycling applications.
With a potential output of up to 110tph and low fuel consumption the Bison 170 is a high performing, environmentally friendly machine. It is zero emissions capable when used with an external power source, aligning with the EvoQuip Think Green, Think EvoQuip sustainability campaign.
The electric drive allows customers to reverse the crusher to clear a blockage or run in reverse for asphalt recycling, ensuring better all-round efficiency. The deflector plate is fitted as standard providing belt protection by allowing uncrushable objects to pass through the crushing chamber safely and onto the discharge belt.
The ability to easily maneuver the machine from site to site and its simple and intuitive control system ensure transport and set up times are minimized while up time in maximized.
Transport Dimensions:
Length: 8.2m (26’ 11”)
Width: 2.3m (7’ 7”)
Height: 2.8m (9’ 2”)
Operating Weight: 17,000kg (37,478lbs)
Power Unit: CAT C4.4 (Tier 3/LRC) – Constant Speed Diesel Electric Drive
Power Output: 70kW
Additional Feature: Capable of “plug-in” to an external power supply
